3.5 Tape roll.
3.5.1 Length of roll. Unless otherwise specified in the contract or order, the length of each
production tape roll shall be as specified in NAEC Drawing 613516, 506733, or 510534, as
applicable (see 6.2).
3.5.2 Tape installation on reel. The tape shall be installed on a reel as shown on the
applicable NAEC Drawing 506733, 613516, or 510534.
3.5.2.1 Tape installation procedure. When installing tape on reel, it shall be installed over
barrier material conforming to MIL-PRF-131, class 1 which has been wrapped around the
periphery of the reel hub. The barrier material shall also cover the sides of the tape reel (inside
of the shipping reel) with two additional feet of paper in excess of the reel side diameters to
permit sealing two sides together all around the reel (see figure 2). The additional barrier
material shall permit the opening and re-sealing of the barrier paper if examination of or work on
the tape is required. Sealing process for barrier material shall not injure the tape. After installing
the tape on reel and covering the barrier material, wooden cleats shall be installed around the
edge of the reel, as shown on the applicable NAEC Drawing 506733, 613516, or 510534.

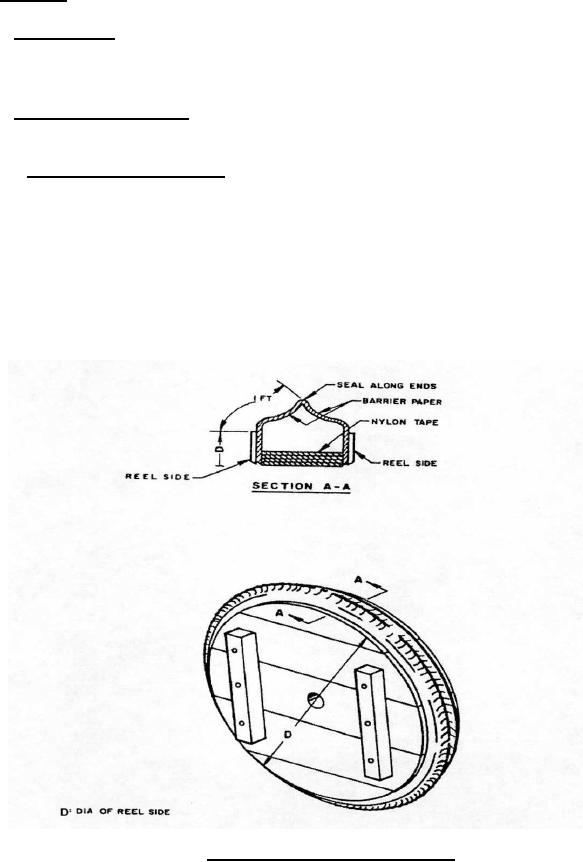

FIGURE 2. Barrier material placement on reel.
